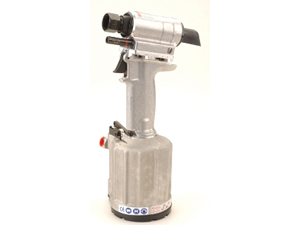

Riveting l Pneumatic Riveters l Huck Model 244
 |
||||
Model |
Applications |
Stroke |
Weight |
Air Pressure |
Air Consumption |
Pull Capacity |
Speed/Cycle |
Noise Level |
Available Versions |
244 |
Up to 1/4” blind rivets/bolts, lockbolts |
.562” |
5.7 lbs. |
90-100 psi |
6 CFM |
4606 lbs. |
30/min |
75 dBA @ 90 psi |
244 |
244OS |
Up to 1/4” blind rivets/bolts, lockbolts |
.562” |
5.7 lbs. |
90-100 psi |
6 CFM |
4606 lbs. |
30/min |
75 dBA @ 90 psi |
244OS |
245 |
Up to 3/8” blind bolts, 5/16” lockbolts |
.625” |
9.3 lbs. |
90-100 psi |
6 CFM |
7500 lbs. |
30/min |
85 dBA @ 90 psi |
245 |
2012 |
1/8”, 5/32”, 3/16” blind rivets, bolts |
.650” |
4.4 lbs. |
90-100 psi |
6 CFM |
2670 lbs. |
30/min |
74 dBA @ 90 psi |
2012-with pintail deflector 2012B-with pintail collection bottle2012V-with vacuum assist pintail collection bottle |
2013 |
1/8”, 5/32”, 3/16 HuckMAX, Huck-Clinch, CherryMax, All Max fasteners. |
.650” |
4.5 lbs. |
90-100 psi |
3.9 CFM |
2670 lbs. |
20/min |
85 dBA @ 90 psi |
2013-with pintail deflector 2013B-with pintail collection bottle 2013V-with vacuum assist pintail collection bottle |
202 |
Up to 3/16” blind bolts, 1/4” blind rivets |
.750” |
5.1 lbs. |
90 psi |
6 CFM |
3900 lbs. |
35/min |
75 dBA @ 90 psi |
202-with pintail deflector 202B-with pintail collection bottle 202V-with vacuum assist pintail collection bottle |
2025 |
Up to 1/4” blind bolts, 1/4” blind rivets |
.675” |
5.75 lbs. |
90-110 psi |
6 CFM |
5290 lbs. |
30/min |
75 dBA @ 90 psi |
2025-with pintail deflector 2025V-with vacuum assist pintail collection bottle |
